◆ SPECIFICATIONS

· X-ray source : Sealed type microfocus tube 20 ~ 90kvP, 180uA,4um @ 2Watts

· X-ray detector : Flat Flat Panel Detector 145x115 mm, 74.8 um Pixel size, 38ms ~10sec/frame

· Scanning time : < 15sec for 360views

· Magnification : 1.4X ~ 5x

· FOV : Φ100mm ~ 25mm, length  220mm

· Rotation method : 360°Continuous rotation using by Slip-Ring

· Resolution : < 28um @ 5.5x

· Reconstruction : Volumetric Cone-beam Reconstruction (FDK) In-line / Off line mode

· Radiation safety : < 1uSv/h at any point on the instrument surface

· Size/Weight : < 1uSv/h at any point on the instrument surface

◆ Applications

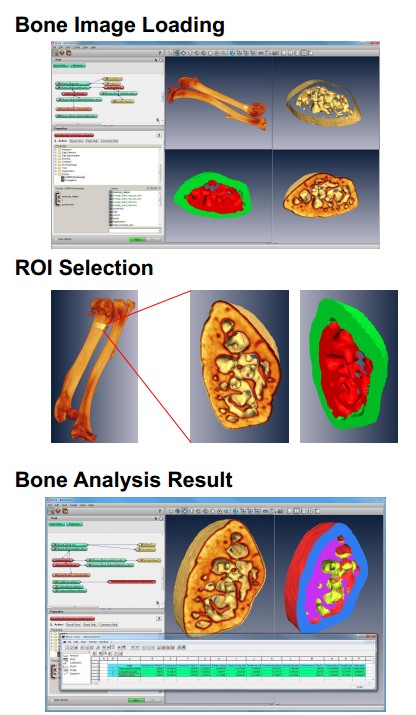

◆Bone disease

· Osteoporosis

· Reumatoid Arthritis

◆Oncology

· Angiogenesis

· Tumor Gorwth

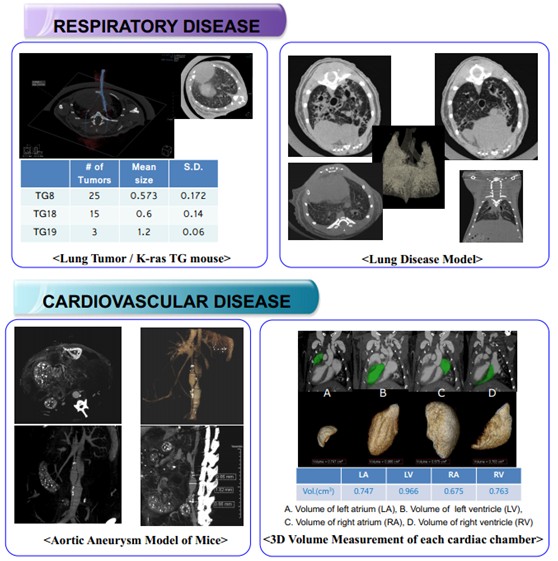

◆Lung disease

◆Cardiovascular disease

◆Phenotyping

◆Musculoskeletal

◆Contrast Imaging

◆X-ray Nanoparticles

· Contrast Enhancement CT

· Image with Gold Nanoparticle

◆Drug Development

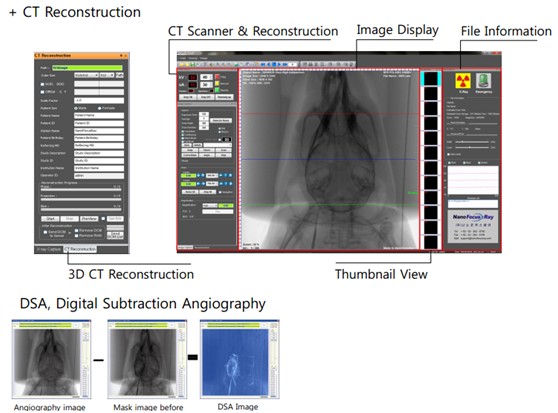

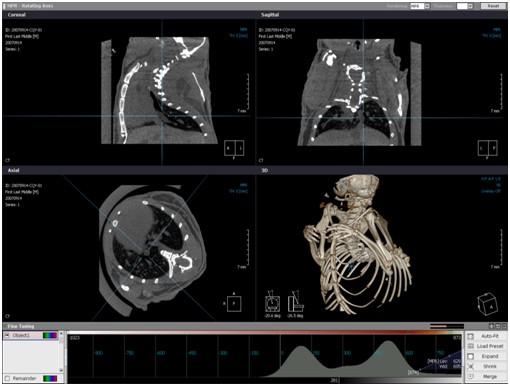

◆ 3D Image viewer and image analysis
